Your Position:Home>Products>Standard Generator>Generator Powered by Doosan Engine

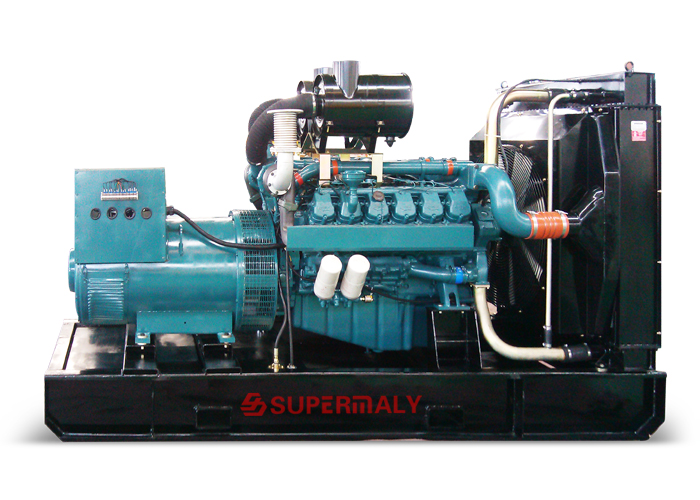

Generator Powered by Doosan Engine

    Korea Doosan group is the biggest financial group in Korea at present.Who is the famous and very competitive global corporation.Founded in 1896,there are 109years history up to now.Which is one of the earliest modern enterprise  in Korea .Doosan group have Doosan Infracore,Doosan heavy industry,Doosan engine,Doosan industrial development and more than 20 subsidiary company .There are 35countries have business. The annual sales is over 18billion dollars.Doosan diesel generator is widely used in national denfense,airline etc important filed.Which is approval by the world with small volume,light weight,low noise,economic and reliable etc advantage.

    ★ warranty period:

    Genset warranty period: 12 months or 1500 hours,whichever occurs first.  If our product have quality problems,we will provide free repair or replacement parts for u (Consumable parts, used parts, man-made damage, lack of maintenance, that is not beyond the warranty )

    ★ Standard:

    International standard certification ISO9001: 2008, industry standards GB / T2820.1997

    ★ Environmental conditions

    under the following conditions, the generator be able to work reliably and output rated power: Altitude: ≤1500m, if altitude above 1500m, the generator output power will be reduce, please consider this when purchasing; Ambient temperature: 40 ℃; Relative Humidity: 85%.

    ★ Generator structure

    Diesel generator consists of diesel engines, alternators, common chassis, and control panel. Engine and alternator are connected by flexible coupling, and mounted on the common base with shock absorber. The control panel mounted on the common base alternator end by the shock absorber. It enables monitoring of electrical parameters of the generator, diesel-parameter measurement, control, parameter adjustment and alarm protection.

    ★ Delivery documentation

    Engine Operation and Maintenance Manual, spare parts manual, diesel engine parts catalog, control panel manual, diesel generator operation and maintenance manual, , diesel generator certification, testing report, alternator manual, etc. .

    ★ Contact us

      Company name:Shandong Supermaly Generating Equipment Co., Ltd   Add:No. 5153 Yingqian Street, Weifang city, Shandong province, China.

      Tel:86-536-2118176  Fax:86-536-2118175

    ★ Direct injection diesel engine;(Global warranty)

    ★ AC synchronous generator (single bearing, global services);

    ★ 40 ℃ -50 ℃ radiator, belt-driven cooling fan, fan safety shield;

    ★ MCCB, standard control panel; (digital display control panel supports eight languages worldwide)

    ★ steel common base with shock absorber

    ★ air filter, fuel filter, lubricating oil filter, start motor, and self-charging alternator;

    ★ battery and connecting cables;

    ★ industrial 90dB muffler and standard connecting parts

    ★ wooden box package

    ★ Engine Operation and Maintenance Manual, spare parts manual, diesel engine parts catalog, control panel manual, diesel alternator operation and maintenance manual, diesel alternator certification, www report, alternator manual, etc. .

    ★ ATS and AMF

    ★with remote control panel

    ★ self-protection, auto-starting control panel

    ★ trailer type mobile power station

    ★ silent type mobile power station

    ★ Lub. Oil heater, diesel heater, water jacket heater

    ★ separate daily fuel tank, integrated base fuel tank

    ★ weather-proof type diesel generator (cabinet)

    ★ silent type diesel generator (cabinet)

    ★ battery charger

    Generator Powered by Doosan Engine Main Technical Specifications:

    50HZ,COSФ=0.8,  400/230V 3P 4W

    Diesel Engine

    Alternator

    Overall Size
    (mm)

    Gross Weight
    (kg)

    Genset Model

    Prime Power
    (kW/kVA)

    Standby Power
    (kW/kVA)

    Model

    Rated Power
    (kW)

    Model

    Rated Power
    (kW/kVA)

    SDW50GF

    50/62.5

    55/68.75

    DB58

    54

    UCI224E

    50/62.5

    1980x750x950

    900

    SDW60GF

    60/75

    66/82.5

    D1146

    77

    UCI224F

    60/75

    2370x790x1200

    1050

    SDW80GF

    80/100

    88/110

    D1146T

    108

    UCI274C

    80/100

    2400x850x1200

    1200

    SDW100GF

    100/125

    110/137.5

    D1146T

    108

    UCI274D

    100/125

    2400x850x1200

    1200

    SDW120GF

    120/150

    132/165

    P086TI-1

    149

    UCI274F

    120/150

    2400x950x1300

    1400

    SDW150GF

    150/188

    170/213

    P086TI

    177

    UCI274G

    150/188

    2500x950x1400

    1600

    SDW160GF

    160/200

    176/220

    P086TI

    177

    UCI274H

    160/200

    2500x950x1400

    1600

    SDW200GF

    200/250

    220/275

    P126TI

    241

    UCD274K

    200/250

    2800x900x1500

    2200

    SDW250GF

    250/313

    275/344

    P126TI-II

    265

    HCI444ES

    250/313

    2910x950x1530

    2450

    SDW300GF

    300/375

    330/413

    P158LE-1

    327

    HCI444FS

    300/375

    3120x1410x1830

    2800

    SDW360GF

    360/450

    400/500

    DP158LCF

    408

    HCI544C

    400/500

    2900x1180x1550

    3100

    SDW400GF

    400/500

    450/563

    DP158LDF

    464

    HCI544C

    400/500

    2900x1180x1550

    3300

    SDW500GF

    500/625

    550/688

    DP180LBF

    556

    HCI544FS

    500/625

    3600x1550x2100

    3500

    SDW600GF

    600/750

    660/825

    DP222LCF

    657

    LVI634B

    600/750

    3650x1550x2100

    3800
