Your Position:Home>Products>Standard Generator>Generator Powered by Cummins Engine

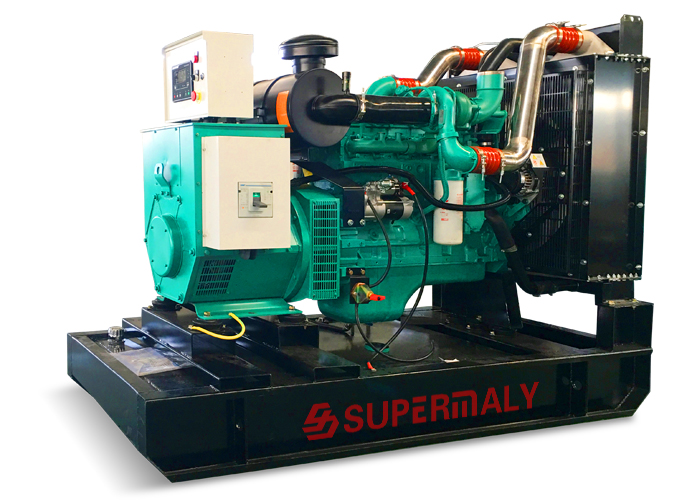

Generator Powered by Cummins Engine

    Cummins is one of the biggest professional manufacturer of engine in the world.Which founded in 1919,Cummins is headquartered in Columbus USA.Cummins is the U.S Fortune 500 list and global famous brand.The engine power for generator is from 20kw to 2573kw. Cummins service customers in approximately 160 countries and territories .This is through a network of more than 550 company-owned and independent distributor locations ,with approximately 5000dealer locations.In china,investment factories include:Dongfeng Cummins(joint with the second automobile to be DCEC),Chongqing Cummins(joint with Chongqing to be CCEC),Xi’an Cummins(joint with Xi’an to be Xi kang),Cummins China power,Cummins Wuxi Stamford,Beijing Foton Cummins,In addition to these any engines and generator canot be use “CUMMINS”.

    ★ warranty period:

    Genset warranty period: 12 months or 1500 hours,whichever occurs first.  If our product have quality problems,we will provide free repair or replacement parts for u (Consumable parts, used parts, man-made damage, lack of maintenance, that is not beyond the warranty )

    ★ Standard:

    International standard certification ISO9001: 2008, industry standards GB / T2820.1997

    ★ Environmental conditions

    under the following conditions, the generator be able to work reliably and output rated power: Altitude: ≤1500m, if altitude above 1500m, the generator output power will be reduce, please consider this when purchasing; Ambient temperature: 40 ℃; Relative Humidity: 85%.

    ★ unit structure

    Diesel generator consists of diesel engines, alternators, common chassis, and control panel. Engine and alternator are connected by flexible coupling, and mounted on the common base with shock absorber. The control panel mounted on the common base alternator end by the shock absorber. It enables monitoring of electrical parameters of the generator, diesel-parameter measurement, control, parameter adjustment and alarm protection.

    ★ Delivery documentation

    Engine Operation and Maintenance Manual, spare parts manual, diesel engine parts catalog, control panel manual, diesel generator operation and maintenance manual, , diesel generator certification, testing report, alternator manual, etc. .

    ★ Contact us

      Company name:Shandong Supermaly Generating Equipment Co., Ltd   Add:No. 5153 Yingqian Street, Weifang city, Shandong province, China.

      Tel:86-536-2118176  Fax:86-536-2118175

    ★ Direct injection diesel engine;(Global warranty)

    ★ AC synchronous generator (single bearing, global services);

    ★ 40 ℃ -50 ℃ radiator, belt-driven cooling fan, fan safety shield;

    ★ MCCB, standard control panel; (digital display control panel supports eight languages worldwide)

    ★ steel common base with shock absorber

    ★ air filter, fuel filter, lubricating oil filter, start motor, and self-charging alternator;

    ★ battery and connecting cables;

    ★ industrial 90dB muffler and standard connecting parts

    ★ wooden box package

    ★ Engine Operation and Maintenance Manual, spare parts manual, diesel engine parts catalog, control panel manual, diesel alternator operation and maintenance manual, diesel alternator certification, www report, alternator manual, etc. .

    ★ ATS and AMF

    ★with remote control panel

    ★ self-protection, auto-starting control panel

    ★ trailer type mobile power station

    ★ silent type mobile power station

    ★ Lub. Oil heater, diesel heater, water jacket heater

    ★ separate daily fuel tank, integrated base fuel tank

    ★ weather-proof type diesel generator (cabinet)

    ★ silent type diesel generator (cabinet)

    ★ battery charger

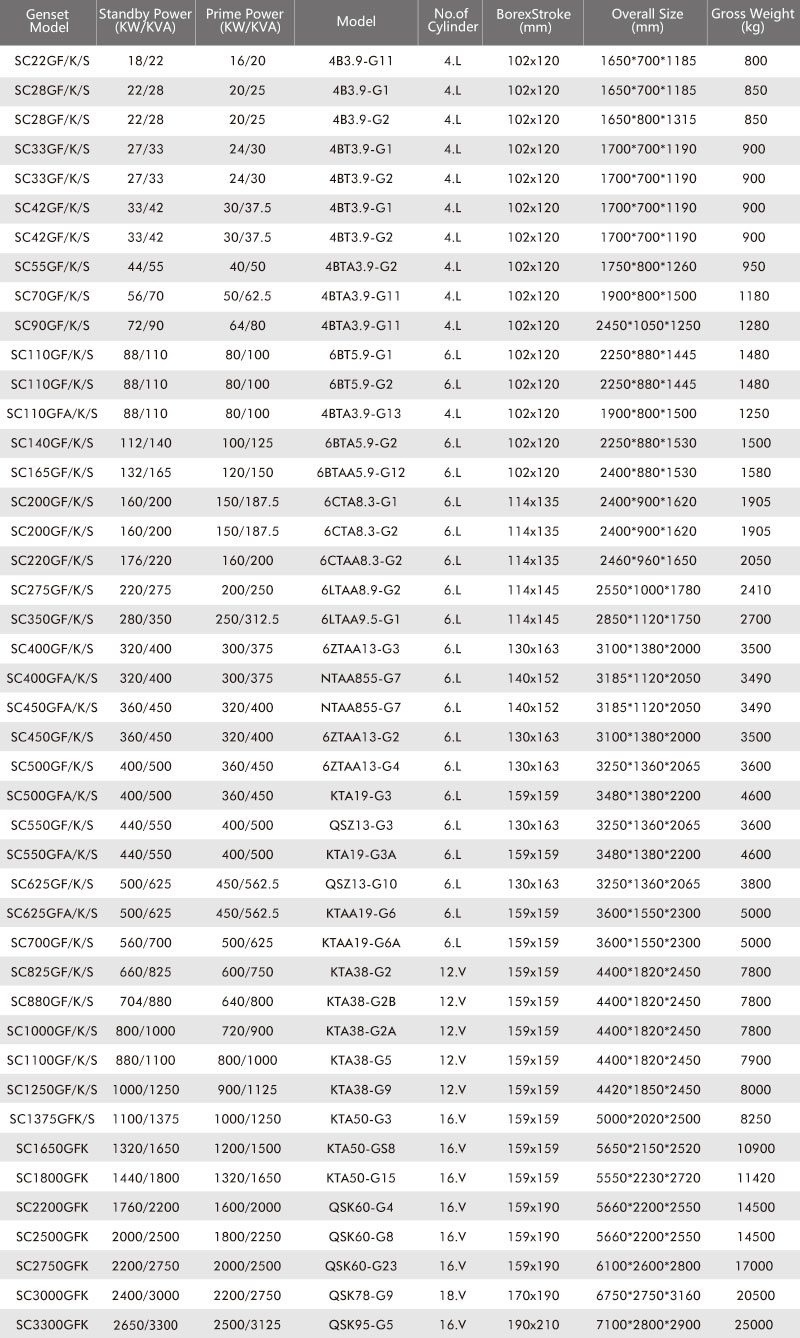

     Generator Powered by Cummins Engine Main Technical Specifications:

    50HZ,COSФ=0.8,  400/230V 3P 4W Diesel Engine Alternator Overall Size
    (mm)
    GrossWeight
    (kg)
    GensetModel Prime Power
    (kW/kVA)
    Standby Power
    (kW/kVA)
    Model Rated Power
    (kW)
    Model Rated Power
    (kW/kVA)
    SC16GF 16/20 17.6/22 4B3.9-G 24 PI144D 18/20 1800x700x1200 700
    SC20GF 20/25 22/27.5 4B3.9-G 24 PI144E 20/25 1800x700x1200 700
    SC25GF 25/31.3 27.5/34.38 4BT3.9-G1 36 PI144G 24/30 1800x700x1200 700
    SC30GF 30/37.5 33/41.25 4BT3.9-G1 36 PI144J 32/40 1800x700x1200 700
    SC40GF 40/50 44/55 4BTA3.9-G2 50 UCI224D 40/50 2000x750x1300 800
    SC48GF 48/60 52.8/66 4BTA3.9-G2 50 UCI224E 48/60 2000x750x1300 800
    SC58GF 58/72.5 63.8/79.75 4BTA3.9-G11 70 UCI224F 58/72.5 2000x750x1300 800
    SC58GF 58/72.5 63.8/79.75 6BT5.9-G 92 UCI224F 58/72.5 2150×800×1550 850
    SC68GF 68/85 74.08/93.5 6BT5.9-G 92 UCI224G 68/85 2150×800×1550 900
    SC80GF 80/100 88/110 6BT5.9-G 92 UCI274C 80/100 2250×830×1550 1000
    SC96GF 96/120 105.6/132 6BTA5.9-G2 110 UCI274D 96/120 2300x850x1400 1000
    SC112GF 112/140 123.2/154 6BTAA5.9-G2 120 UCI274E 112/140 2300x850x1400 1200
    SC120GF 120/150 132/165 6BTAA5.9-G12 140 UCI274F 128/160 2300x850x1400 1200
    SC128GF 128/160 140.8/176 6CTA8.3-G2 163 UCI274F 128/160 2300x850x1400 1200
    SC144GF 144/180 158.4/198 6CTA8.3-G2 163 UCI274G 145.6/182 2300x850x1400 1400
    SC160GF 160/200 176/220 6CTAA8.3-G2 185 UCI274H 160/200 2500x850x1400 1400
    SC184GF 184/230 202.4/253 6LTAA8.9-G2 220 UCD274J 184/230 3010x1000x1700 2600
    SC200GF 200/250 220/275 6LTAA8.9-G2 220 UCD274K 200/250 3010x1000x1700 2600
    SC200GF 200/250 220/275 6LTAA8.9-G3 230 UCD274K 200/250 3010x1000x1700 2600
    SC240GF 240/300 264/330 QSM11-G2 292 HCI444D 240/300 3010x1000x1700 2600
    SC240GF 240/300 264/330 MTAA11-G3 265 HCI444D 240/300 3010x1000x1700 2600
    SC260GF 260/325 286/357.5 NTA855-G2 292 HCI444ES 260/325 3010x1000x1700 2800
    SC280GF 280/350 308/385 NTA855-G2A 313 HCI444E 280/350 3010x1000x1700 2800
    SC304GF 304/380 334.4/418 NTAA855-G7 343 HCI444FS 304/380 3300x1150x1700 3000
    SC300GF 300/375 330/412.5 6ZTAA13-G3  340 HCI444FS 304/380 3300x1150x1700 3000
    SC320GF 320/400 352/440 NTAA855-G7 343 HCI444F 320/400 3300x1150x1700 3000
    SC350GF 350/438 385/481 QSZ13-G2 400 HCI544C 400/500 3300x1150x1700 4200
    SC350GF 350/438 385/481 6ZTAA13-G2  390 HCI544C 400/500 3328x1150x1670 4200
    SC350GF 350/438 385/481 6ZTAA13-G4  400 HCI544C 400/500 3328x1150x1670 4200
    SC360GF 360/450 396/495 KTA19-G3 408 HCI544C 400/500 3300x1150x1700 4200
    SC400GF 400/500 440/550 KTA19-G3A 448 HCI544C 400/500 3300x1150x1700 4600
    SC480GF 480/600 528/660 KTAA19-G5 504 HCI544E 488/610 3500x1420x2220 5000
    SC500GF 500/625 550/687.5 KTAA19-G6 518 HCI544FS 500/625 3500x1420x2220 5500
    SC600GF 600/750 660/825 KTA38-G2 665 LVI634B 600/750 4500x1700x2400 8000
    SC640GF 640/800 704/880 KTA38-G2B 711 HCI634G 640/800 4500x1700x2400 8000
    SC728GF 728/910 800.8/1001 KTA38-G2A 814 LVI634D 728/910 4500x1700x2400 8500
    SC800GF 800/1000 880/1100 KTA38-G5 881 HCI634J 800/1000 4700x1800x2500 9500
    SC900GF 900/1125 990/1238 KTA38-G9 990 HCI634K 900/1125 4850x1850x2500 9400
    SC1000GF 1000/1250 1100/1375 KTA50-G3 1115 PI734A 1000/1250 4950x2080x2560 10120
    SC1200GF 1200/1500 1320/1650 KTA50-GS8 1287 PI734C 1200/1500 5400x2195x2560 10600
